Hidden mounting.

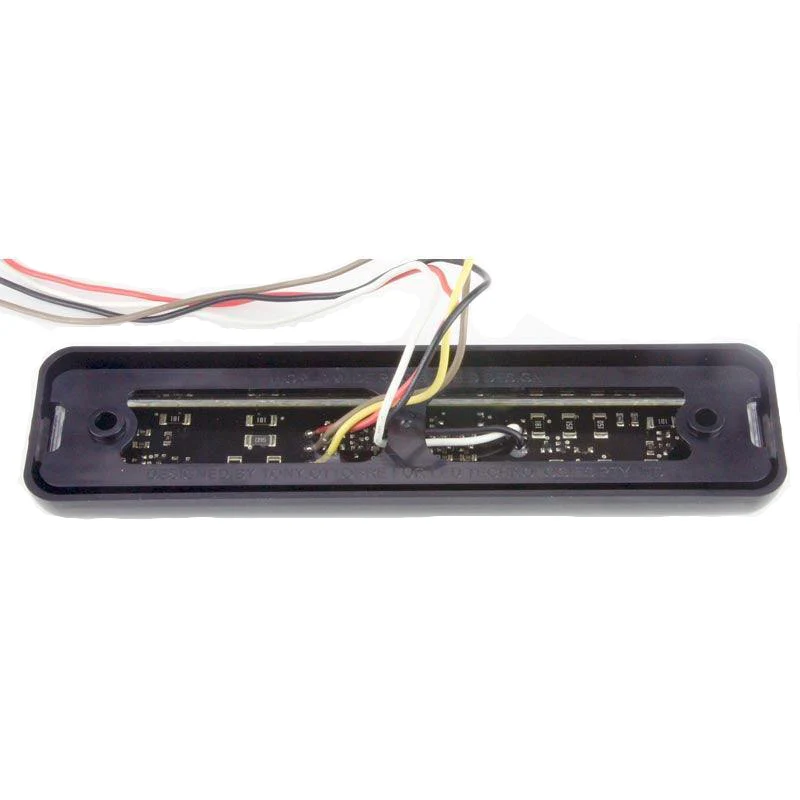

The moulded black plastic housing is surface-mounted to your panel and the LED lamp unit just snaps into it.

'E9' Marked.

Maximum overall dimensions200mm (8") x 50mm (2") x 28mm deep (1.12") 380mm long pre-wired fly leads.

Two 6mm mounting holes @ 160mm centres.

12 volt to 24 volt.

Weight 150gms each.

Wiring:

White - Earth

Yellow - Indicators

Red - Stop

Brown - Tail

Black - Reverse

SLIMLINE LED STOP/TAIL/INDICATOR/REVERSE LAMP #RL99
