Tig welded construction with 40mm diameter, screw-on, knurled cap.

This is not a tank to be pressurised in your cooling system, it is for the water overflow.

Width including brackets 170mm.

Front to back 75mm.

Height 182mm.

Capacity 1 ltr.

Welded-on brackets for bulkhead mounting with 7mm holes at 143mm centres.

1/8" (3mm) overflow outlet on neck.

1/4" (7mm) inlet in side at bottom.

1/4" (7mm) inlet in side at top.

Supplied in natural aluminium finish but you can polish to a mirror finish.

Weight 542 gm.

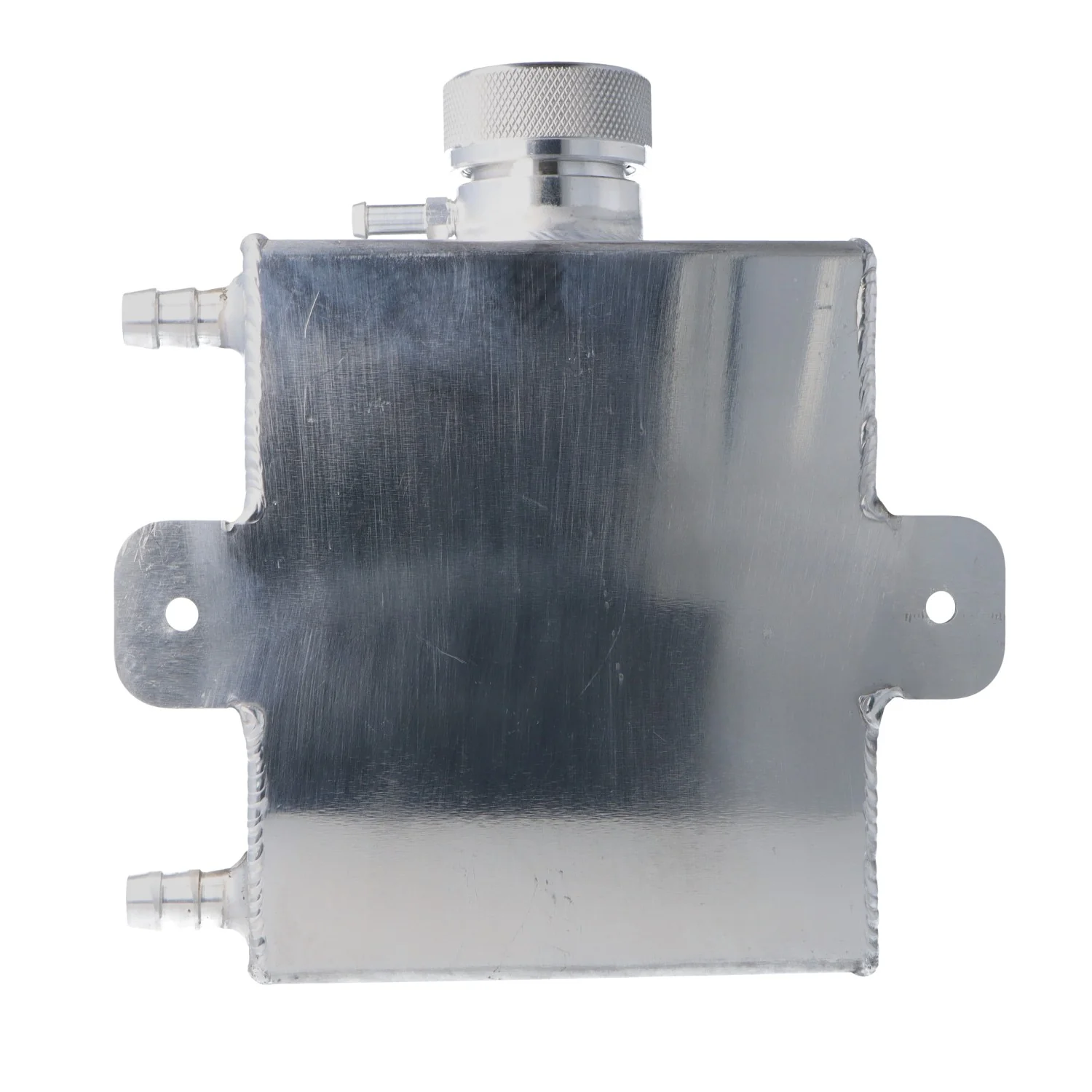

RECTANGULAR ALUMINIUM EXPANSION TANK #AEXPAN1
